Product Details:
|

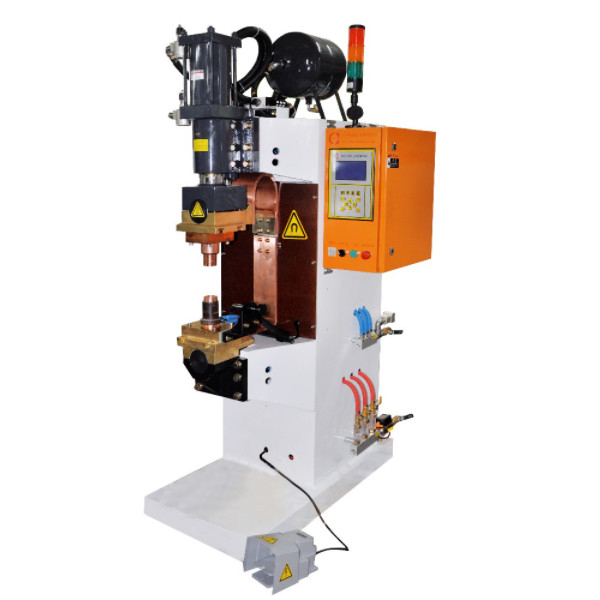

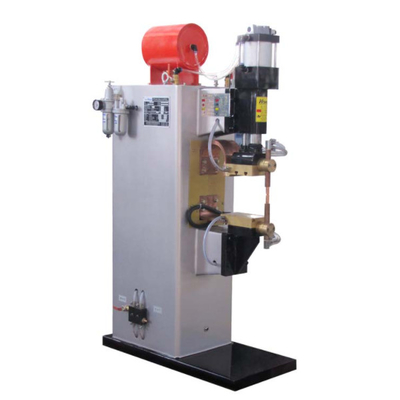

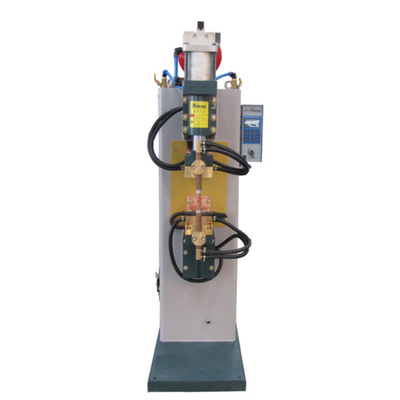

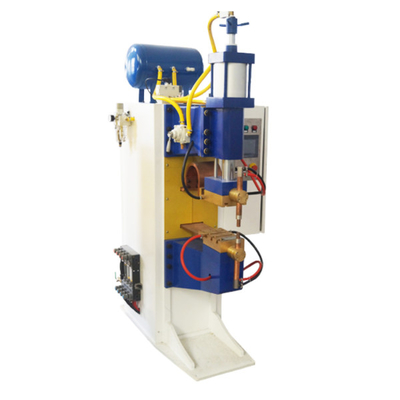

| Name: | 150kgs 380V Steel Wire Spot Welding Machine 100mm Electrode Distance | Type: | Welding Machine |
|---|---|---|---|
| Dimensions: | 900mmX1150mmX1750mm | Voltage: | 380V,220V |
| Color: | Can Be Customized | Weight (KG): | 150kgs |
| Output Current: | 18KA | Application: | Automotive And Household Appliances |
|
NO.
|
Item
|
Data
|
|
|
1
|
Applied material
|
Copper and aluminum tube
|
|
|
2
|
Tube thickness
|
0.5-1.5mm
|
|
|
3
|
Welding speed
|
5-7 s/piece
|
|
|
4
|
Working pressure
|
0.5-0.6Mpa
|
|
|
5
|
Output voltage
|
1-8 adjustable
|
|
|
6
|
Input voltage
|
380-450 V, 50 Hz, 3 phase
|
|
|
7
|
Control system
|
PLC + touch screen
|
|
|
Model
|
Diameter range of tube
|
||
|
TL(K)-25KVA
|
4-8mm
|
||
|
TL(K)-50KVA
|
6-10mm
|
||
|
TL(K)-75KVA
|
6-16mm
|
||
|
TL(K)-100KVA
|
10-20mm
|
||
Applicable Industries: Manufacturing Plant
Condition: New
Place of Origin: Jiangsu, China
Rated Capacity: 25/35/50 KVA
Rated Duty Cycle: 50% Max.
Welding Thickness: 1.5mm
Dimensions: 900mmX1150mmX1750mm
Usage: tube welding
Voltage: 380V
Warranty: 1 year
After-sales Service Provided: Online support, Video technical support,
thickness: 0.5-1.5mm
Welding speed: 5-7 s/piece A
pplied material: Copper and aluminum tube
Working pressure: 0.5-0.6Mpa
Output voltage: 1-8 adjustable
Cutting Tolerance: 0.5mm/1m
Name: condenser evaporator copper aluminum tube pipe welding machine
1,Real time frequency automatic tracking display
2,Welding modes: time, energy, and grounding
3,Welding amplitude 10%-100% adjustable (1% accuracy)
4,Amplitude compensation
5,Mold impedance analysis + protection
