Product Details:
|
| Name: | Wide Automatic Welded Wire Mesh Machine Fence Panel Wire Mesh Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
|---|---|---|---|
| Certification: | CE,ISO9001,ISO9001-2008;CE | Color: | Can Be Customized |
| Voltage: | 220V/380V/415V/440V | Weight: | 1300KGS |
| Warranty: | 1 Year | Application: | Power Plants |

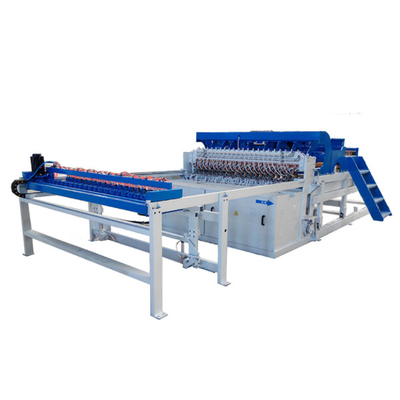

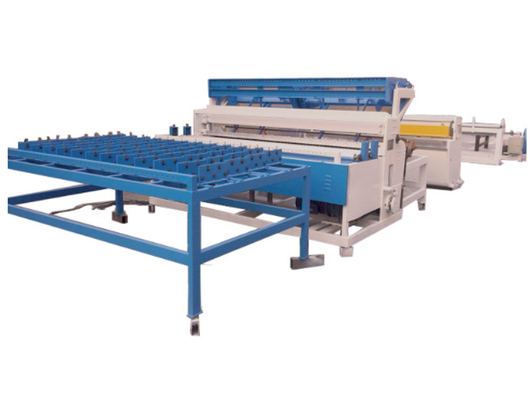

Wide Automatic Welded Wire Mesh Machine Fence Panel Wire Mesh Machine
Specification
| Model | AD-RWM-2000 | AD-RWM-2500 | AD-RWM-3000 |
| Mesh width | Max.2000 mm | Max.2500 mm | Max.3000 mm |
| Mesh hole size |
100 mm 150 mm |
100 mm 150 mm |
100 mm 150 mm |
| Wire diameter | 3.0-5.0 mm | 3.0-5.0 mm | 3.0-5.0 mm |
| Welding speed | 40-80 Times/min | 40-80 Times/min | 40-80 Times/min |
| Transformer | 125KVA*3 125KVA*4 |
125KVA*4 125KVA*5 |
125KVA*5 125KVA*6 |
| Dimensions | 8.5 X 2.5 X 1.65 m | 9.5 X 3.0 X 1.65 m | 12 X 3.5 X 1.65 m |
| Weight | 5500 KG | 6500 KG | 7500 KG |
| Note: we can produce the machines according to your requirements. | |||
Description

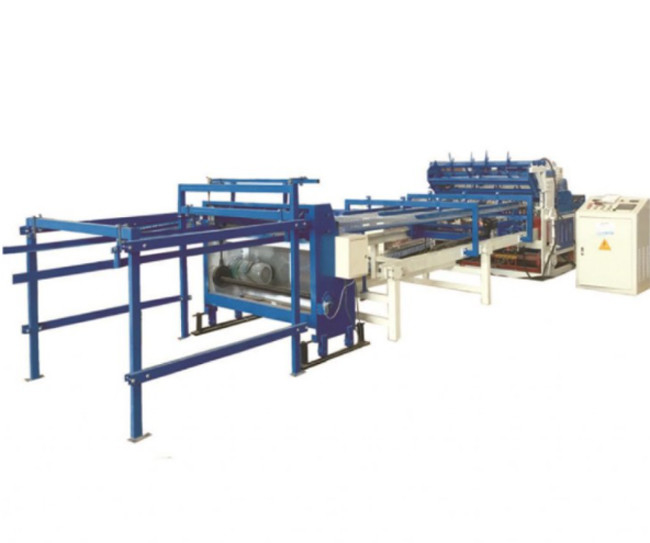

The Automatic Reinforcing Mesh Welding Line Type I is an automatic reinforcing mesh welding machine with automatic feeding of broken wire in both vertical and horizontal lines and automatic stacking and packing of products. The vertical line is automatically lined up, aligned and fed automatically, the horizontal line is stored and fed automatically, and the mesh is automatically output, dropped, stacked, aligned and packed. Compared with the common reinforcing mesh welding equipment, the automatic mesh feeding line replaces manual feeding, automatic mesh turning, mesh dropping and packing instead of manual lifting, placing and bundling, which saves labour cost and improves production efficiency.
