Product Details:
|
| Name: | Refrigerator Titanium Fin Microchannel Heat Exchanger 25.4mm 50M3/H | Tube Type: | Flat Type |
|---|---|---|---|
| Thickness: | 12mm | Liquid Flow Rate: | Max 50 M3/h |
| Fin Material: | Aluminum/Brazed/Copper/Titanium/Gasket | Voltage: | AC220v/380v/customized ,50Hz/60Hz |
| Weight: | 50kgs | Application: | Heat Pump |
| High Light: | 50M3/h fin type heat exchanger,50M3/h refrigerator heat exchanger,25.4mm refrigerator heat exchanger |
||
Refrigerator Titanium Fin Microchannel Heat Exchanger 25.4mm 50M3/H
| Product name | Refrigerator Titanium Fin Microchannel Heat Exchanger 25.4mm 50M3/H |
| Fin material | Aluminum/Brazed/Copper/Titanium/Gasket |
| Fins type | Plain,serrate,louver,perforated and corrugated forms are typical |
| Voltage | AC220v/380v/customized ,50Hz/60Hz |
| Packaging | Pallet ,export wooden case or customized required |
| Warranty | 1 Year |
| Delivery time | air delivery 7-10days,sea delivery 20-30days |
| Payment Terms | T/T, L/C |
| Certification | CE,ROHS ,ISO9001,ISO14001 |
| Application |
Air-conditioner products,Water chiller system,Fridge, freezer products,Cold storage buliding system,Multiple cooling system,Ice making machine,
|
Product introduction
Microchannel heat exchangers can be divided into micro microchannel heat exchangers and large scale microchannel heat exchangers according to their external dimensions.
Micro micro-channel heat exchanger is designed to meet the needs of the development of the electronics industry and a class of compact, lightweight, efficient heat exchanger, the structure of the form of the flat plate flow of micro-heat exchanger, sintered mesh type porous micro-heat exchanger.
Large-scale micro-channel heat exchanger is mainly used in traditional industrial refrigeration, waste heat utilization, automotive air conditioning, household air conditioning, heat pump water heaters, etc.. Its structure form has parallel flow tube type heat sink and three-dimensional wrong flow type heat sink. Due to the large size (up to 1.2m × 4m × 25.4mm [13]), micro-channel hydrodynamic diameter in 0.6 ~ 1mm below, so called large-scale micro-channel heat exchanger.

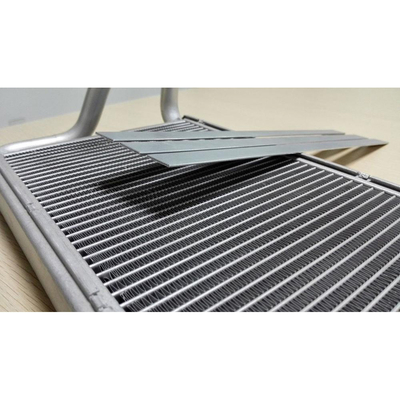

Detailed image
