Product Details:
|
| Name: | AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance | Voltage: | AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz |
|---|---|---|---|
| Structure: | Finned Tube | Fin Material: | Stainless Steel |
| Air Inlet Temperature: | 20℃ | Wall Thickness: | SS304 T0.6, SS316L T0.9 |
| Weight: | 100-5000kg,50-1000kgs | Application: | Freezer |
| High Light: | 62mm finned Tube Heat Exchanger,62mm fin and tube condenser,AC110V finned tube heat exchanger |
||
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.45 mm | 3 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.35 mm | 3 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.35 mm | 3 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 3 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 3 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 3 mm |
| Other finned tube size can be customized. | ||||

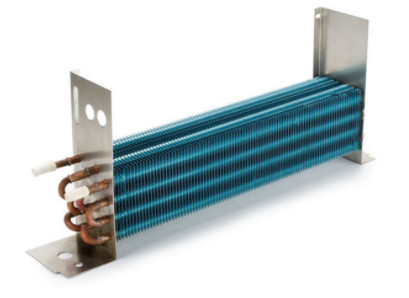

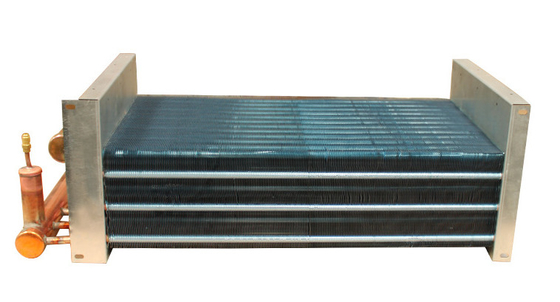

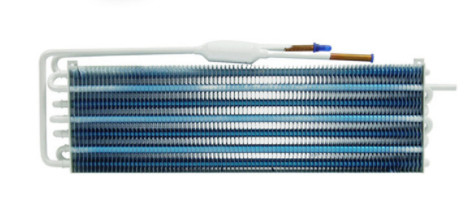

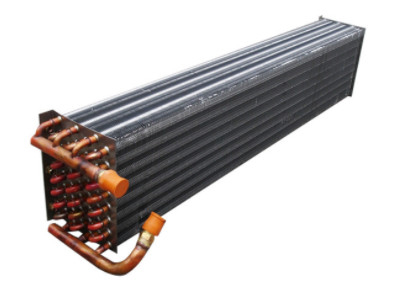

Detailed image
1. the installation of radiator brackets, brackets should be installed in an accurate position, pay attention to lightly take, lightly put to avoid damage to the radiator by brutal operation.
2.The distance between the back of the radiator and the inner surface of the wall should be not less than 150mm.
3.The branch pipe connecting the radiator should have a slope of 1%~2% according to the different lengths of the branch pipe, and the slope should be conducive to exhaust and water drainage.
4.If the length of the radiator branch pipe exceeds 1.5m, a pipe card should be installed on the branch pipe.
