Product Details:
|
| Name: | Hydrophilic Foil 2HP Pin Fin Type Heat Exchanger Grooved Design | Voltage: | 50/60HZ,220V/380V |
|---|---|---|---|
| Tube Material: | Copper/Titanium | Fin Material: | Copper /SS/Al |
| Fin Type: | Flat Fin, Window Fin, Louver Fin | Fan Cover: | With Cover Or Without Cover,with Fan Motor Or Without Fan Motor |
| Weight: | 50kgs | Application: | Machinery & Hardware |
| High Light: | 2HP pin fin heat exchanger,R407c pin fin heat exchanger,R407c plate fin exchanger |
||
Specification
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.3 mm | 4-5 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.3 mm | 5-8 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 8-10 mm |
|
Other finned tube size can be customized. (Materials S/S 201, S/S 304, S/S 316 are optional) |
||||

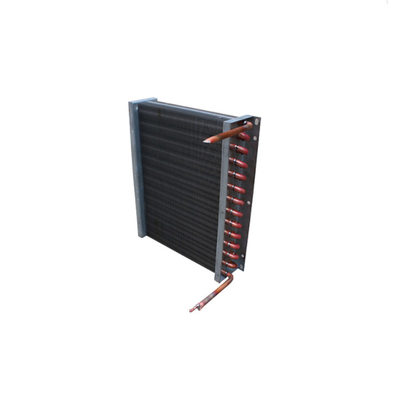

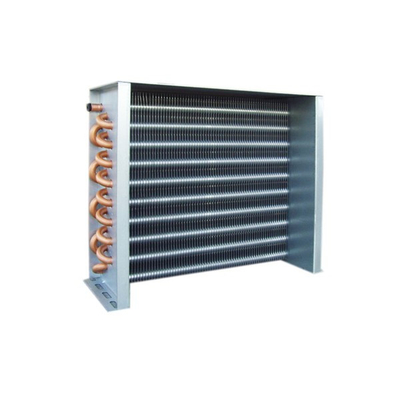

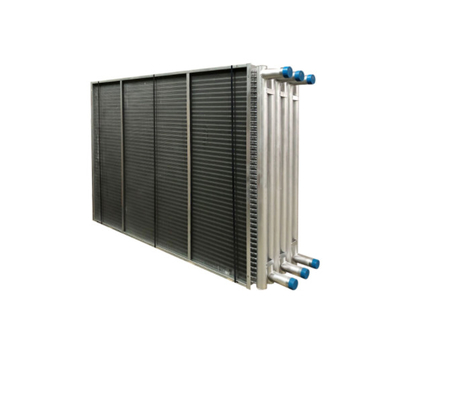

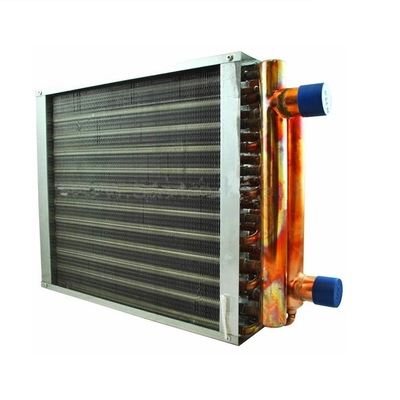

Detailed image
Applications
The cost of fin tube heat exchanger is generally higher than conventional heat exchangers due to a higher level of detail required during manufacture.
However, these costs can often be outweighed by the cost saving produced by the added heat transfer.
fin tube heat exchanger are generally applied in industries where the fluids have little chances of fouling.
The delicate design as well as the thin channels in the fin tube heat exchanger make cleaning difficult or impossible.
