Product Details:
|
| Control:: | PLC Control With Touch Screen | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Supply Ability:: | 50 Set/Sets Per Month | Place Of Origin:: | Jiangsu, China |
| Condition: | New | Head:: | Single Head |
| High Light: | pipe reducer machine,pipe shrinking machine |
||

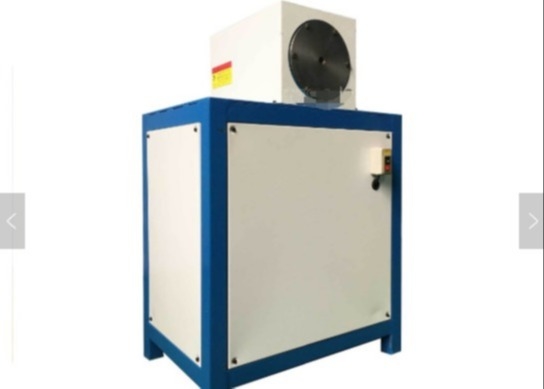

1, Forming by rotary swaging process for welding process in next step.
2, Four-die design for less noise and better quality product
3, Special designed forming die ensure welding quality with less waste in next step..
4, Casted forming head housing ensure stable performance and long-life use.
5, Core-bar design to ensure the inner diameter during process.
Technical parameter
| Type | idea-40 | idea-60 | idea-80 | idea-100 |
| Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
| Max processing length(mm) | 110 | 130 | 150 | 180 |
| Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
| Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
| Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
| Weight(kg) | 600 | 950 | 1600 | 1800 |
| Remark | 1.The max processing length can according to customers requirement. | |||
