High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life

High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life
High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life

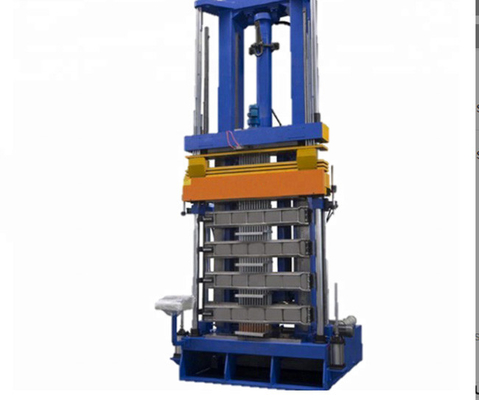

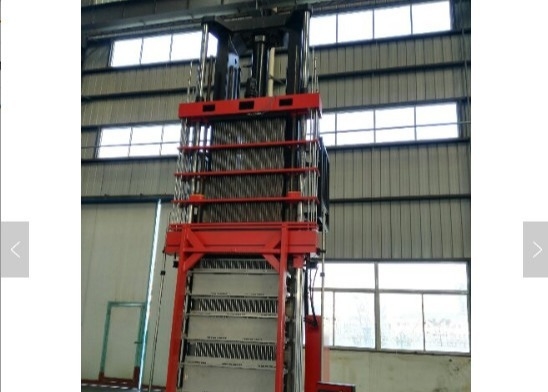

Large Image :  High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 60-80days
Payment Terms: L/C, T/T
Supply Ability: 1 sets per days

High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life

Description
Name: High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life Material: Stainless Steel,304 Stainless Steel And Carbon Steel
Weight: 1800kg Type: Automatic Electric
Voltage: 380V Or As Required Welding Speed: 70-120 Rows/m
Dimension: 1410x860x1930(machine) 1170x1130x1020(wire Stand) Color: Standard Konform Green Color Or According To Customer's Requirement,Customized
Application: All Electrically Conductive Metal
High Light:

vertical expander machine

,

pipe expander machine

High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life

Vertical Expansion Machine Specification



Item Specification
Model ZZL-850 ZZL-1200 ZZL-1600 ZZL-2000 ZZL-2500 ZZL-3000
Max Length of Tube Expander 200-850 200-1200 200-1600 250-2000 300-2500 300-3000
Pipe Diameter φ5,φ7,φ7.4,φ9.52
Wall Thickness 0.25-0.45
Pitch-row×Pitch Adaptive Configuration
Max Number of Tube Expander 8
Max number of holes in each row 60
Fin Hole Diameter The Customer Provides
Fin holes arrangement Plover or Parallel
The diameter of the tube expanding cylinder φ150,φ180,φ200,φ220
Total Power 7.5,15,22
Hydraulic Pressure ≤14Mpa
Expending speed About 5.5m/min
Voltage AC380V,50HZ, 3 phase 5 wire system
Remarks Specifications can be modified according to customer’s requirements

product detail

high performance pipe expander machine

High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life 0



High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life 1

High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life 2



Detection device

High Performance Pipe Expander Machine Each Row 60 Holes Long Service Life 3

Packing Details

The machine is packed in plywood cases which can be moved through forklift by its feet.
The nearest sea port is Shanghai port which is the largest and most convenient port over China.
The delivery time is 60 days after receipt of down payment.
The machine can be loaded into normal container (20GP or 40GP).



Delivery Details

45-120 days after approval of your

specification and receipt of your payment for new clients.

Port: Shanghai
Lead Time :


Quantity(Sets)

1 - 1

>1

Est. Time(days)

60

To be negotiated
