High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation

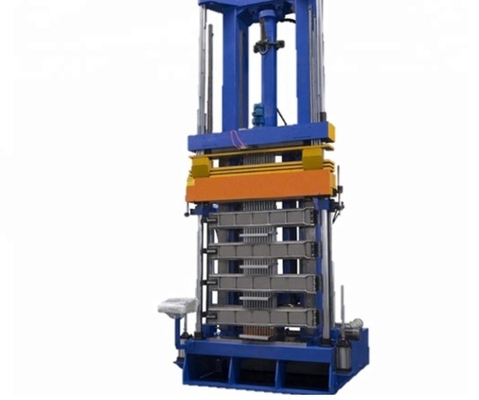

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation

Large Image :  High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001,ISO14001,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 1 sets per days

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation

Description
Name: High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation Type: Automatic Electric
Voltage: 380V Or As Required Welding Speed: 70-120 Rows/m
Material: Stainless Steel,304 Stainless Steel And Carbon Steel Mesh Width: 1-2.5m
Wire Diameter: 0.45-2.6mm Weight: 1800kg
Application: Condenser
High Light:

vertical expander machine

,

pipe expander machine

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation

Specifications



Name High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation
Type Expanding machine
Refrigeration 20-800(kw)
Airflow 100-30000(m³/h)
Weight
Tube qty 12-18pcs
Heat exchange methods and performance Refrigerant ←→copper tube ←→corrugated sheet, internally threaded tube, large internal surface area, good ventilation by louvre opening, large heat dissipation area by corrugated sheet



Applicaltion

Dehumidifiers, mobile air conditioners, heat pumps, marine air conditioners, transport refrigeration, rail transport, automotive air conditioner,freezing and refrigeration

Vertical Expander Machine


1. Customized brand
2. high performance
3. best service with warranty guarantee
4. pass CE



Vertical Expander



Expanders come in all sizes, from single tube expanders to large horizontal expanders for your largest coils. We offer many options to customize your expander to your specific production requirements.

Vertical expander is an high-efficient equipment for heat exchanger copper tube expanding. It owns smaller volume,

easy to operate/adjust and it has good bending quality and high efficiency.

1.  Expanding tube, tube flaring and reflaring can be completed at one time.

2.  Hardness alloyed expanding head with high efficiency and long life.

3.  Electric, hydraulic and pneumatic components from famous international brand ensure the working stability and reliability.

4.  The oil cylinder for expanding tube is arranged on the top of expanding bar, which is main used to mass produce family used air conditioners. The oil cylinder for expanding tube is arranged inside of machine body. The expanding power is transferred by transferring rack to lower the height of machine, which is normal used to expand central air conditioners, which the customer can choose according to their production.

Work piece length:600mm,800,1000,1200,2000,2500,3000mm for option.

Three model doors for your choice: Manual door or Double rotary work table(coil length<1600mm)

Coil lifting table(coil length>1600mm).

Inner-placed cylinder(coil length>1600mm).

Inner-placed cylinderand outer-placed cylinder(work piece length: 600,800mm).

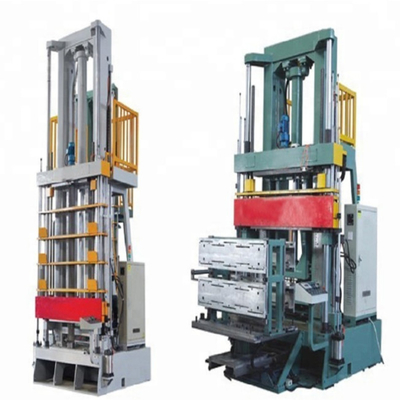

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation 0

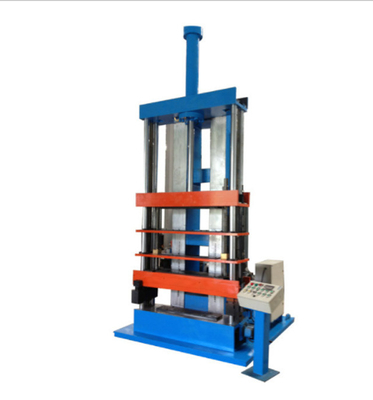

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation 1

Packing Details

1) Standard Export Packing.
2) Packing : Wood Frame /Iron Frame/ Seaworthy Package / Exporting

standard wooden case package / Customer's Request

3) Shipment : By courier, sea/air freight are acceptable.

4) Accepts LCL, FCL shipment.



Delivery Details

45-120 days after approval of your

specification and receipt of your payment for new clients.

Port: Shanghai
Lead Time :


Quantity(Sets)

1 - 1

>1

Est. Time(days)

60

To be negotiated

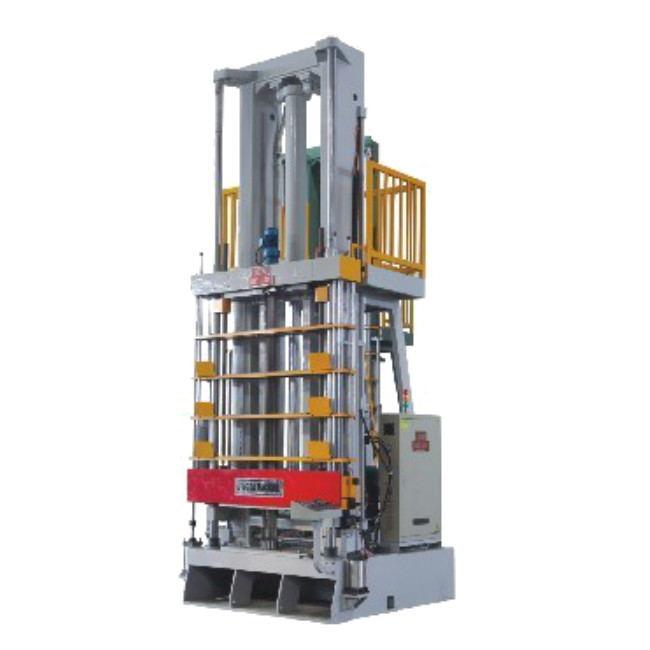

High Efficiency Vertical Expanding Machine , Tube Expander Machine Easy Operation 2
