Product Details:
|
Warranty: | 1 Year | Afer Sales Service: | On Line Technical Support |
---|---|---|---|
Liquid Flow Rate: | Max 50 M3/h | Working Pressure: | Maximum 20 Bar |
Structure:: | Micro Channel Aluminum Heat Exchanger | Fin Material:: | Aluminum |
Tube Material:: | Aluminum | After Sales Service: | Engineers Available To Service Machinery Overseas |
Dimension(L*W*H): | Custimized Made | ||
High Light: | refrigerator heat exchanger,ac heat exchanger |

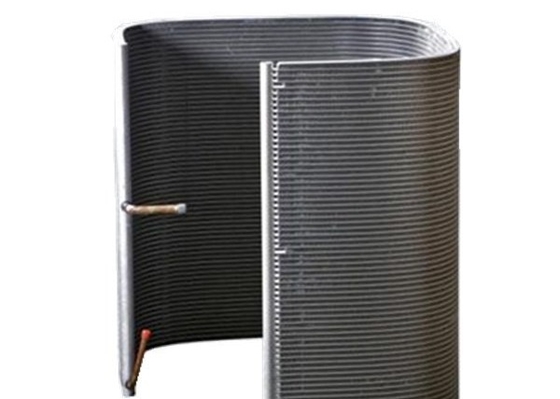

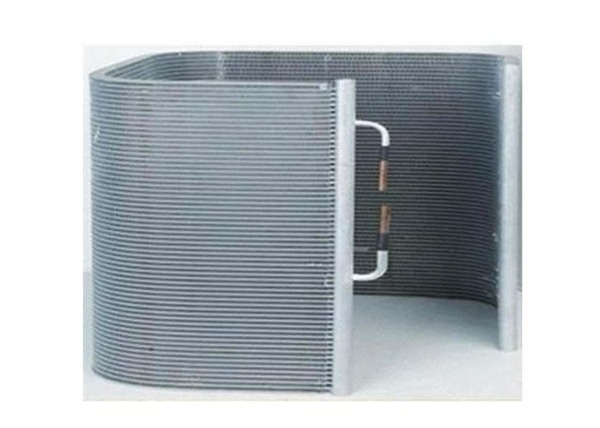

1. Micro-channel air cooled condenser
2. Thickness: reach to 12, 16, 20, 25.4, 32, 36mm.
3. Lower weight-more compact design
4. Longer lifetime-higher product reliability
5. More friendly for environment-easier to recycle
6. Cost efficient-lees refrigerant change
Width(mm) | Thickness(mm) | Hole No. | |
Flat pipe specifications | 12 | 1.2 | 17 |
16 | 1.3 | 16 | |
20 | 2 | 12 | |
25.4 | 2 | 13 | |
25.4 | 2 | 20 | |
32 | 2 | 25 | |
36 | 2 | 26 | |
36 | 3 | 23 | |
fin | plain | ||
corrugated plate | |||
window plate |
More than 5 experienced professional technicians and engineers are devoting themselves into the developing of Micro Channel Heat Exchange technology. The development and technology goes ahead of the field.
Accept OEM service,we can according to customer's drawing design
Supply Ability:
3445 Unit/Units per Month
Packaging Details
wooden packing etc., the packing pattern can be customerized
Port:shanghai, ningbo
