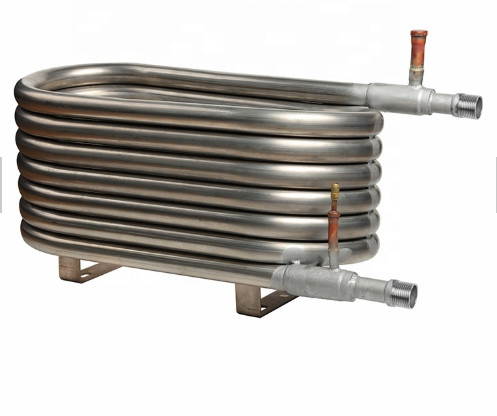

Product Details:
|
| Name: | Copper Spiral Coaxial Heat Exchanger High Heat Transfer Efficiency | Pipe Diameter: | 12.7mm-50mm |
|---|---|---|---|
| Material: | Titanium | Refrigerant Pressure: | 3.5Mpa |
| Water Side Pressure: | 2.5Mpa | Working Temperature Range: | -30-100°C |
| Structure: | Tube Heat Exchanger | Application: | Swimming Pool Boiler |
| High Light: | coaxial coil heat exchanger,coaxial tube heat exchanger |
||
Specification
| Type | New energy |
| Liquid Flow Rate | 2.09-100m3/h |
| Maximum Working Pressure | Refer to details |
| Weight | 1-100KGS |
| Warranty | 1 Year |
| After-sales Service Provided | Field installation, commissioning and training |
| Condition | New |
| Place of Origin | Jiangsu, China (Mainland) |
| Brand Name | OEM |
| Structure | Tube Heat Exchanger |
| Voltage | 110V/220V/380V |
| Dimension(L*W*H) | 880*450*50mm |
| Material | Pure titanium tube |
| Application | Heat exchanger |
| Applicable Industries | Manufacturing Plant |
Used in high-flow low temperature household and industrial sites, specialized for heat pump,such as pool heat pump, heating machine, water&ground-sourced heat pump ,heat pump water heater,industrial heat pump,swimming pool etc.
.
Our normal Technical Data for your reference :
| MODEL |
L*W*H |
Heat capacity |
Refrigerant |
Water |
HP |
Weight |
|||
| NTS-010Ci-UT | 340 | 250 | 180 | 12000 | 3.8 | 12.7/19 | G1'' | 1 | 6 |
| NTS-015Ci-UT | 340 | 250 | 250 | 18000 | 5.7 | 12.7/19 | G1'' | 1.5 | 9 |
| NTS-020Ci-UT | 440 | 257 | 200 | 24000 | 7.6 | 12.7/19 | G1'' | 2 | 18 |
| NTS-030Ci-UT | 440 | 270 | 320 | 36000 | 3 | 12.7/19 | G1'' | 3 | 20 |
| NTS-040Ci-UT | 451 | 267 | 369 | 48000 | 15 | 12.7/19 | G1'' | 4 | 28 |
| NTS-050Ci-UT | 440 | 270 | 447 | 60000 | 19 | 12.7/19 | G1'' | 5 | 30 |
| NTS-060Ci-UT | 661 | 229 | 498 | 72000 | 23.5 | 12.7/19 | G1'' | 6 | 38 |
Selling Units:Single item
Single package size: 83X40X40 cm
Single gross weight:31.000 kg
Package Type:carton and plywood packaging,or you require
Lead Time :
| Quantity(Pieces) | 1 - 10 | 11 - 100 | >100 |
| Est. Time(days) | 5 | 20 | To be negotiated |
