Product Details:
|

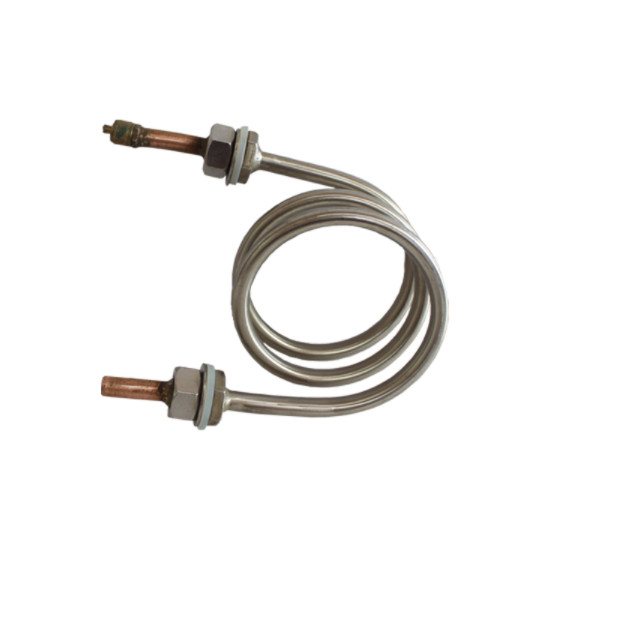

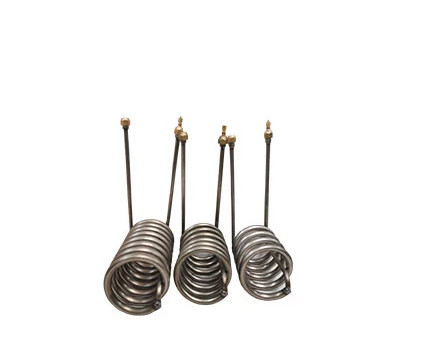

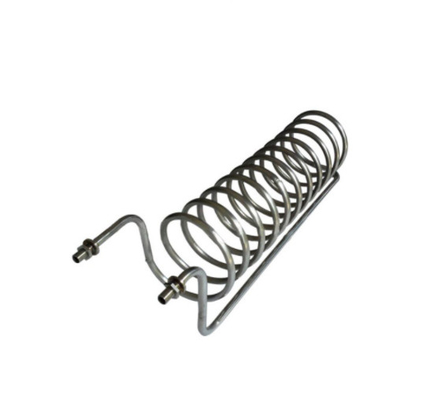

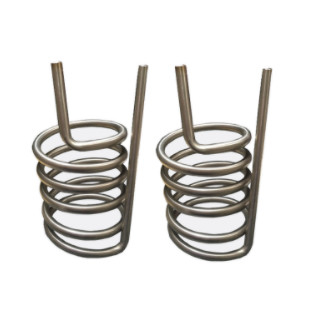

| Name: | Coaxial Cooler Heat Exchanger , Refrigerator Heat Exchanger Spiral Twisting Construction | Certificate: | CE,Rohs,ISO9001 |
|---|---|---|---|
| Voltage: | 220V/240V | Key Selling Points: | High-accuracy |
| Heating Capacity: | 4kw-44kw | Supply Ability: | 10000 Set/Sets Per Month |
| Construction: | Spiral Twisting Construction | Material: | Cooper Nickel ,seamless Steel,titanium,monel |
| After-sales Service: | Technical Support | ||
| High Light: | coaxial coil heat exchanger,coaxial tube heat exchanger |
||
Specification
| Liquid Flow Rate | 2.09-100m3/h |
| Maximum Working Pressure | Refer to details |
| Weight | 1-100KGS |
| Warranty | 1 Year |
| After-sales Service Provided | Field installation, commissioning and training |
| Condition | New |
| Place of Origin | Jiangsu, China (Mainland) |
| Brand Name | OEM |
| Structure | Tube Heat Exchanger |
| Voltage | 110V/220V/380V |
| Dimension(L*W*H) | 880*450*50mm |
| Material | Pure titanium tube |
| Application | Heat exchanger |
| Type | New energy |
| Applicable Industries | Manufacturing Plant |
Coaxial heat exchanger consist of one spiral grooves inner tube and a outer tube. Cold liquid and heat liquid flow in the gap that between inner and outer tube or in inner tube separately.
Coaxial Heat Exchanger with copper is good heat conduction suitable air sourced heat pump water heater,water chiller and so on.
Spiral twisted construction optimized surface structure of heat exchanger tubes and enlarge the area on the unit heat exchange tube.
Because of Spiral twisting construction,it produced high turbulence flow and enhanced heat transfer efficiency on both side.
Big pass diameter inside unlimited the water quality.
High turbulence inside reduced fouling rate on water side.
One heat exchanger tube promised the risk of inner leaking.
Cost effcient
Various material choose from copper,cupronickel,aluminum,titanium,stainless steel to carbon steel.
Application
Coaxial heat exchangers with excellent ability for heat exchanging and adaptation are widely used for:
1. Heat pump water heater condenser
2. Condenser/evaporator for water chiller
3. Condenser for pool heat pump
4. condenser/evaporator for water(ground) source heat pump
5. cooler or regenerator for CO2 heat pump air
6. Condenser/evaporator for marine AC
7. Condenser for ice machine
8. Evaporator for water purifier
9. Evaporation or condenser for mariculture constant temperature machine
10. Condenser for dish washer
11. Condenser or evaporator for salt solution dehumidifier
12. Economizer
13. Regenerator
Packaging & Delivery
Packing :Wooden cases.
If you want to customize the packing, please contact us
Supply Ability:10000 Piece/Pieces per Month
Lead Time :
|
Quantity(Pieces) |
1 - 20 | >20 |
| Est. Time(days) | 10 | To be negotiated |
