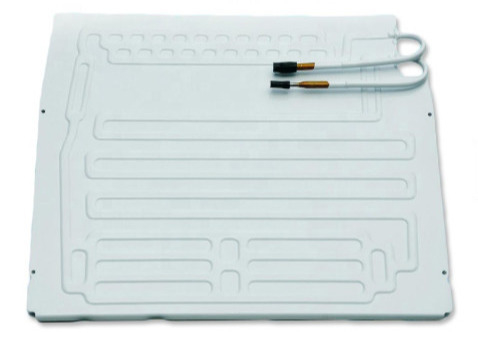

White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification

White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification
White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification

Large Image :  White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM
Certification: CE,ROHS ,ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case or customized
Delivery Time: 10-20days
Payment Terms: L/C, T/T
Supply Ability: 30000 pcs per month

White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification

Description
Certification: CE,ROHS,ISO9001 After-sales Service Provided: Online Support
Tube Material: Copper Tube Refrigerant: R404a/R134a/R507a
Material: Aluminum Warranty: 1 Year
High Light:

fridge evaporator

,

evaporator in refrigeration system

Roll bond evaporator packed with Carton/wooden case or customer request

1, Specifics of the products

Widely applied to refrigerator, freezer, showcase, water dispenser, wine cabinet and so on



Specification

Application Widely applied to refrigerator, freezer, showcase, water dispenser, wine cabinet and so on.
Raw material

Al-plate: finished products thickness: 1.1 ~ 2.0mm ,

raw material Al plate thickness: 1.8~ 2.5mm

Structure

Double side roll bond evaporator,

single side roll bond evaporator,

part single side roll bond evaporator

Size No.1. 1/5 1346*360mm 25pcs/ctn
No.2. 1/6 1185*305mm 25pcs/ctn
No.3. 1/8 long 1056*245mm 25pcs/ctn
No.4. 1/8 short 610*380mm 30pcs/ctn
No.5. 1/8 855*288mm 25pcs/ctn
No.6. 1/10 DKK 395*383mm 40pcs/ctn
No.7. DKK 1031*448mm 70pcs/ctn
No.8. DKK 383*520mm 50pcs/ctn
No.9. 700*360mm 50pcs/ctn
No.10 . 1/12 400*210mm 100pcs/ctn
No.11. 1185*305mm 25pcs/ctn
No.12. 1510*400mm 25pcs/ctn
No.13. 855*288mm 25pcs/ctn

2, Product Applications

-- Deforst or freeze protection of refrigerator or ice box
-- Feeze protection of plate heat exchangers
-- Temperature maintenance of heated food counters in canteens
-- Anti-condensation of electronic or electric control boxes
-- Hermetic compressors heating
-- Anti-condensation of bathrooms mirrors
-- Anti-condensation of refrigerated display cabinets
-- Domestic appliances,medical...

White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification 0

3, Packaging & Delivery

Packaging Details

Outside:Carton/wooden case or customer request
Inside:Pearl film packaging, with very good protection

Port:Shanghai/Ningbo

Package Type:General

Export package: Carton box with wooden pallet.

Lead Time :

Quantity(Pieces)

1 - 10000

>10000

Est. Time(days)

20

To be negotiated


White Roll Bond Refrigerator Evaporator With CE ROHS ISO 9001 Certification 1
