Product Details:
|
| Name: | Refrigeration Evaporator | Air Throw: | 6M ~ 46M |
|---|---|---|---|
| Tube Material: | Copper Tube | Color: | Paint As Customers Needs |
| Voltage: | 220V/50HZ | Condition: | New |
| High Light: | fridge evaporator,evaporator in refrigeration system |
||

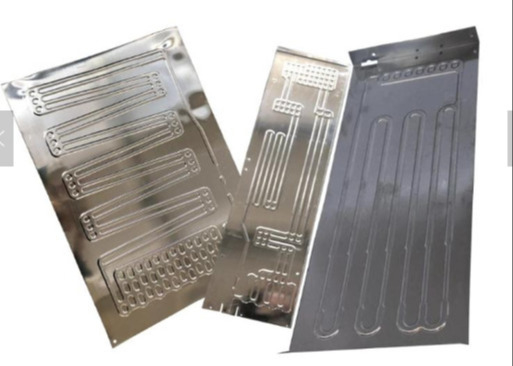

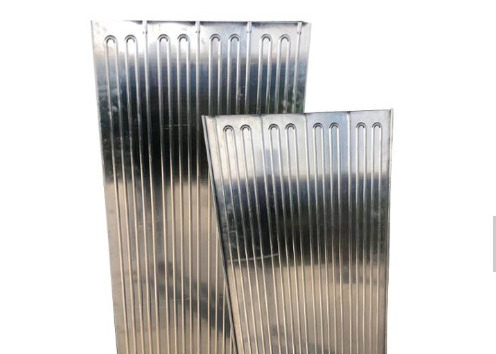

Rollbond evaporator is made from 2 Aluminum plates, according to the technology, there’s 2 kinds of the
rollbond, one is channel double sides(DSC), another is one side flat (OSF) , we provide both types.
|
Raw material (Al plate) |
Al plate: the thickness of finished product is 1.1-2.0mm |
| The thickness of raw Al plate:1.7-2.15mm | |
|
|
Refrigeration parts |
Structure |
Double side roll bond evaporator |
| Single side roll bond evaporator | |
| Part single side roll bond evaporator | |
Key process |
Preparing materials – cleaning – printing – rolling – annealing - blowing up – punching –folding and sharpening –adding the capillary – assemble welding – leakage testing – cleaning and drying – coating - inspection – packing. |
|
Performance
|
(1) Surface treated with powder coating to prevent corrosion |
| (2) Inner cleanness can meet the requirement of R134a and CFC cooling system | |
| (3) Can satisfy the cooling capability requirements of the designed refrigerator. | |
| Notation |
Max dimension: width 292mm, length 1277.5mm. |
-- Deforst or freeze protection of refrigerator or ice box
-- Feeze protection of plate heat exchangers
-- Temperature maintenance of heated food counters in canteens
-- Anti-condensation of electronic or electric control boxes
-- Hermetic compressors heating
-- Anti-condensation of bathrooms mirrors
-- Anti-condensation of refrigerated display cabinets
-- Domestic appliances,medical...
4, Packaging Details
Outside:Carton/wooden case
Inside:Pearl film packaging, with very good protection
Port:Shanghai/Ningbo
Package Type:General
Export package: Carton box with wooden pallet.
Lead Time :
|
Quantity(Pieces) |
1 - 10000 |
>10000 |
|
Est. Time(days) |
20 |
To be negotiated |
