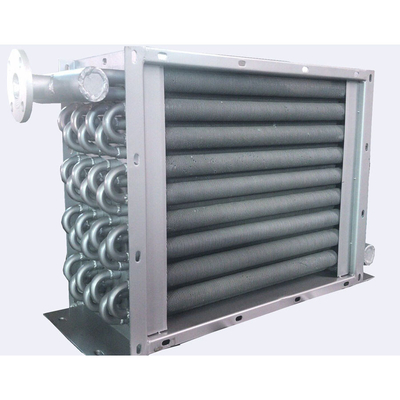

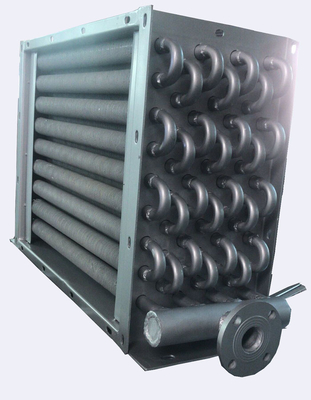

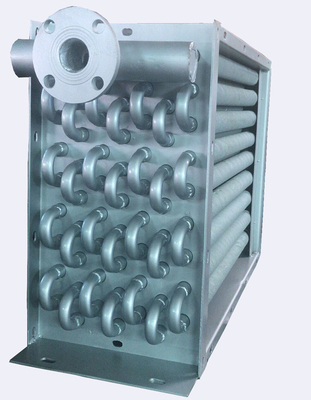

Product Details:
|
| Name: | Compact Fin Type Heat Exchanger Low Power Consumption | Fin Material: | Stainless Steel |
|---|---|---|---|
| Tube Material: | Aluminum | Voltage: | AC110V/AC220~24V/AC380V |
| Structure: | Fin-tube Type | Foil: | Stainless Steel Fins |
| Fin Distance: | 4-5mm | Application: | Cooling |
| High Light: | flat tube heat exchanger,finned pipe heat exchanger |
||
Specification
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.3 mm | 4-5 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.3 mm | 5-8 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 8-10 mm |
|
Other finned tube size can be customized. (Materials S/S 201, S/S 304, S/S 316 are optional) |
||||

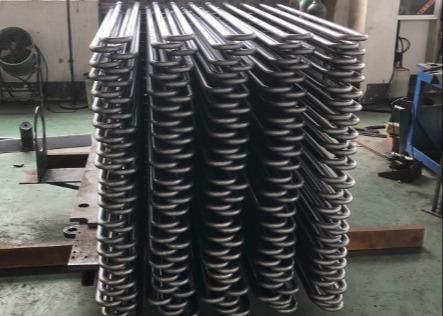

Detailed image
Application
Stainless steel tube and fin heat exchanger is the use of stainless steel tube string stainless steel sheet as one table cooler, radiator, heater, stainless steel tube through high-tech technology after the rise of the tube so that stainless steel sheet contact closely, effectively improve the cooling and heat transfer effect, the circular arc corrugation can promote fluid turbulence, improve the heat transfer coefficient. With good heat transfer performance, small air resistance, compact structure, light weight and other characteristics. It can be widely used in air conditioning, cooling, de-humidification, heating and other projects. It can also be applied to various process air heating and cooling, especially for low temperature difference heat exchange air heat exchange process
