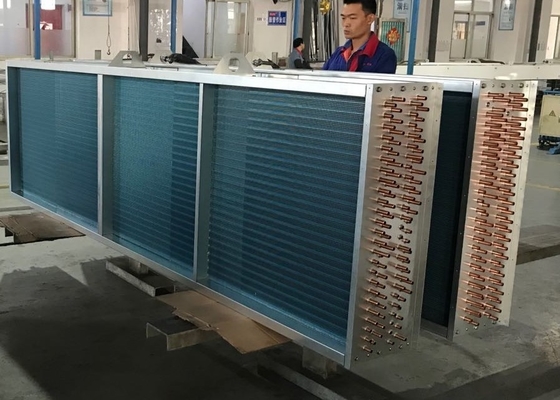

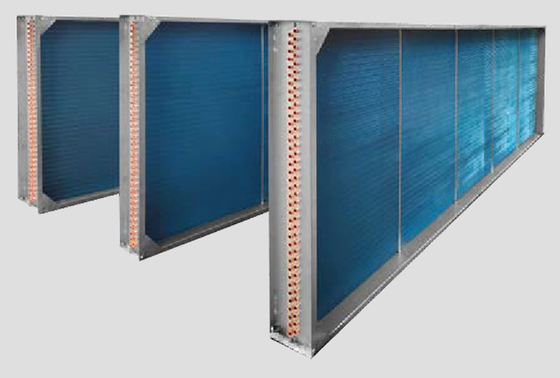

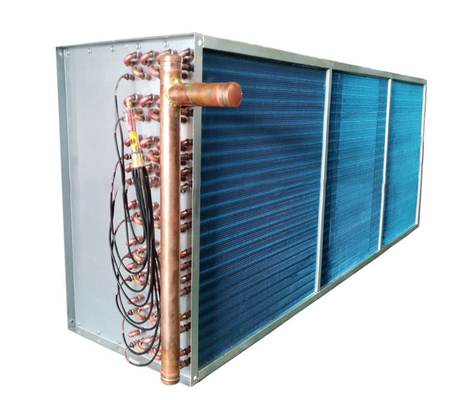

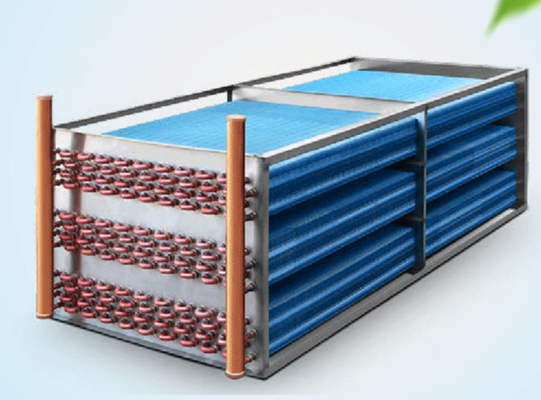

Product Details:
|
| Name: | Copper Fin Type Refrigerator Heat Exchanger , Air Conditioner Heat Exchanger | Type: | Fin Tube Heat Exchanger |
|---|---|---|---|
| Certification: | CE,ISO9001,Supplier Assessment Certificate,RoHS,ISO | Tube Material: | Copper Etc |
| Material: | Aluminum,copper | Fin Height: | 0mm-16mm,<17mm |
| Fin Material: | Aluminum | Application: | Heater Parts,Refrigeration Parts,Heat Exchange,Evaporator |
| High Light: | finned heat exchanger,freezer heat exchanger |
||
| Copper tube |
Die specific mm(inch) |
Fin shape |
Fin pitch (mm) |
Rows | Material | ||
| surface | Edge | Tube | Fins | ||||
| Φ5(1/5”) | 19.5*11.6 (0.768’’*0.457’’) | Louvered/V-wave | straight | 1.1-1.8 | 1-4 | copper | Al |
|
Φ7 (0.276”) |
21*12.7 (0.827’’*0.5’’) | Slit/louvered | straight | 1.2-2.0 | 1-4 | copper | Al |
| 21*18.3 (0.827’’*0.72’’) | V-wave/plat | Straight/waved | 1.2-3.0 | 1-4 | copper | Al | |
|
Φ7.94 (5/16”) |
22*19.05 (0.866’’*0.75”) | Louvered/waved/plat | Straight | 1.2-3.0 | 1-4 | copper | Al |
| 25.4*19.05 (1”*0.75”) | Louvered/waved/plat | straight | 1.3-4.0 | 1-6 | copper | Al | |
| 25.4*15.88 (1”*0.625”) | waved/plat | Straight/waved | 1.3-4.0 | 1-6 | copper | Al | |
| 25.4*22 (1”*0.866”) | Louvered/waved/plat | straight | 1.3-4.0 | 1-4 | copper | Al | |
| 30*30 (1.18”*1.18”) | Corrugated Wave | straight | 4.0-5.0 | 1-6 | copper | Al | |
|
Φ9.52 (3/8”) |
25*21.65 (0.984”*0.852”) | S-V/V-W/louvered/plat | Straight/waved | 1.5-3.2 | 1-12 | copper | Al |
| 25*21.65 (0.984”*0.852”) | S-W/plat | Straight/waved | 1.8-7.0 | 1-12 | copper | Al/SS | |
| 25.4*22 (1”*0.866”) | Louvered/waved/plat | Straight/waved | 1.5-3.2 | 1-12 | copper | Al | |
| 25.4*22 (1”*0.866”) | Plat/waved | Straight/waved | 3.2-6.35 | 1-12 | copper | Al | |
| 25.4*15.88 (1”*0.625”) | Waved/plat | Straight/waved | 1.3-4.0 | 1-12 | copper | Al | |
| 25.4*25.4 (1”*1”) | Plat | Straight | 3.2-6.35 | 1-12 | copper | Al | |
| 31.75*27.5 (1.25”*1.083”) | V-W/plat | Straight | 3.2-6.35 | 1-12 | copper | Al | |
|
Φ12.7 (1/2“) |
31.75*27.5 (1.25”*1.083”) | S-W/plat | Straight | 1.8-6.35 | 1-12 | Copper/SS | Al/T2/SS |
| 38.1*38.1 (1.50“*1.50“) | S-W/plat | Straight | 4.0-6.35 | 1-6 | Copper/SS | Al/T2/SS | |
| Φ12.0 | 48*41.75 (1.890“*1.637“) | V-W/plat | straight | 4.5-8.5 | 1-8 | copper | Al |
| 50*25 (1.969“*0.984“) | S-W/plat | straight | 4.0-7.0 | 1-12 | copper | Al | |
|
Φ15.88 (5/8”) |
38.1*33 (1.50”*1.299”) | Sine Wave/plat | straight | 2.2-5.0 | 1-6 | Copper/SS | Al/T2/SS |
| 38.1*33 (1.50”*1.299”) | Sine Wave | straight | 4.5-10.0 | 1-6 | Copper/SS | Al/T2/SS | |
| 38.1*38.1 (1.5”*1.5”) | Sine Wave | straight | 4.5-6.35 | 1-6 | Copper/SS | Al/T2/SS | |
| 50*50 (1.969”*1.969”) | Corrugated Wave | straight | 2.5-12.0 | 1-6 | Copper/SS | Al/T2/SS | |
| 60*52 (2.362*2.047”) | Corrugated Wave | straight | 4.5-10.0 | 1-6 | copper | Al | |
| 60*30 (2.362”*1.181”) | Corrugated Wave | straight | 2.6-8.5 | 1-8 | copper | Al | |
| 52*45 (2.047”*1.772”) | Corrugated Wave | straight | 6.0-12.0 | 1-6 | copper | Al | |
Application
The cost of fin tube heat exchanger is generally higher than conventional heat exchangers due to a higher level of detail required during manufacture.
However, these costs can often be outweighed by the cost saving produced by the added heat transfer.
fin tube heat exchanger are generally applied in industries where the fluids have little chances of fouling.
The delicate design as well as the thin channels in the fin tube heat exchanger make cleaning difficult or impossible.
